Tri-Pack with regular, parallel and top-jamb mounting, instructions and full size template. Standard spring adjustment from size 2 to 6 Non handed Standard with adjustable sweep, latch and back check. Full plastic cover SNB - Sex Nuts and Bolts Standard hole pattern and mounting location.
Features
- Tri-Pack with regular, parallel and top-jamb mounting, instructions and full size template. Standard spring adjustment from size 2 to 6 Non handed Standard with adjustable sweep, latch and back check. Full plastic cover SNB - Sex Nuts and Bolts Standard hole pattern and mounting location.

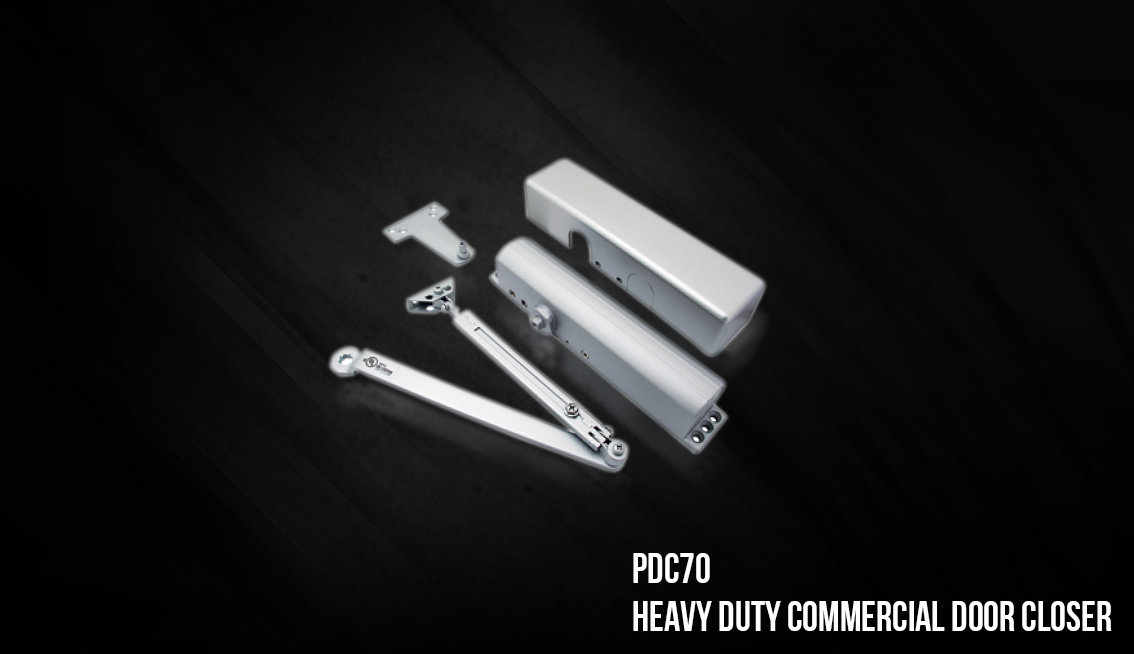

- PDC70
- Closer - Closers shall be by PAH model number TDC70 and TDC70BF, full rack and pinion type with cast aluminum alloy body. All closers shall be provided with non-critical hex-key adjustment to independently regulate the sweep, latch and back-check. Closer shall be non-handed with full cover and projection of 2-1/2” from the surface of the door. Closer shall have full spring adjustment from size 1 to size 4 for barrier free (BF) size and size 2 to size 6 for standard size. The closer shall be pre-adjusted at the factory to size 2 for TDC70BF and size 3 for TDC70. Each closer shall be adjusted for each door condition and mounted to allow the maximum degree of swing.
CERTIFICATION
- TDC 70 Door Closer is ANSI/BHMA certified heavy duty Grade 1 with aluminum body, and UL 10C 3-hour rated.
