European Grade · Cylinders

Cylinders

Precision cylinder mechanisms designed for compatibility across the European mortise and panic latch ranges.

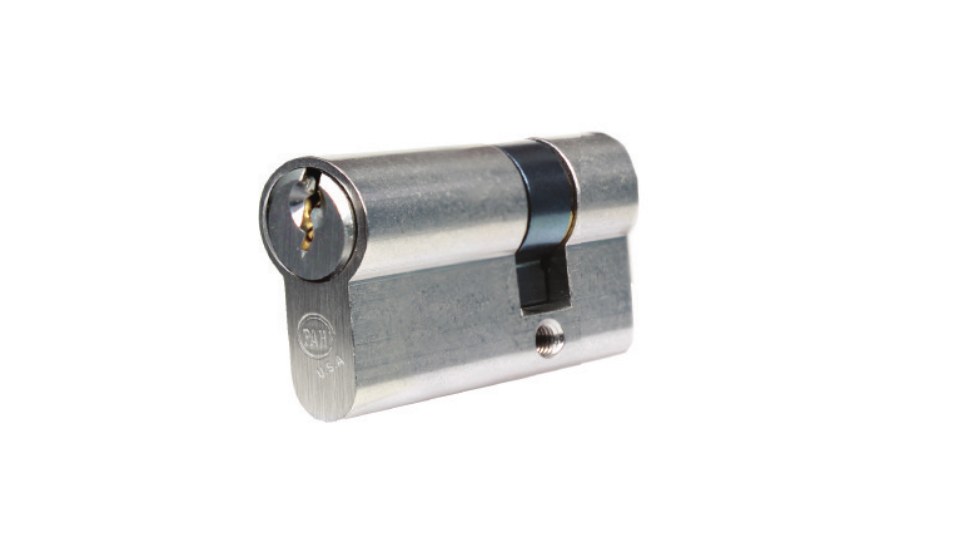

PAH PH H19 Single Cylinder
6 ModelsAnti-Drill ProtectionEuro ProfileEN 1303 / EN 1634 Certified
Euro Profile Cylinder
PH H19
Single Cylinder
● 10 Yr Guarantee🔥 Fire Rated
PAH PH H19 Single Cylinder - European Grade
Material
  • Brass 5 pin single cylinder

Material Option: Brass

Detail
  • Cylinder supplied with 3 brass keys
  • Anti-drill protection
  • Available in salt water resistant finish
Certification
  • In compliance with EN 1634:2012
  • In compliance with EN 1303:2015
Finish & US Equivalent
Nickel (NI)US15
Chrome Plated (CP)US26
Antique Brass (AB)US10A
Antique Copper (AC)LB
Physical Vapour Deposition (PVD)US3
Satin Chrome (SC)US26D
Satin Brass (SB)US4
Ordering Details
Product NoFinishSizes (B-C-A)
PH H19Nickel10 - 30 - 40mm
PH H19Chrome10 - 35 - 45mm
PH H19AB10 - 40 - 50mm
PH H19AC10 - 50 - 60mm
PH H19PVD
PH H19SC
PH H19SB
Euro Profile Cylinder
PH D20
Double Cylinder
● 10 Yr Guarantee🔥 Fire Rated
PAH PH D20 Double Cylinder - European Grade
Material
  • Brass 5 pin double cylinder

Material Option: Brass

Detail
  • Cylinder supplied with 3 brass keys
  • Anti-drill protection
  • Available in salt water resistant finish
  • Friction-free tumbler pins for extra long life
Certification
  • In compliance with EN 1634:2012
  • In compliance with EN 1303:2015
Finish & US Equivalent
Nickel (NI)US15
Chrome Plated (CP)US26
Antique Brass (AB)US10A
Antique Copper (AC)LB
Physical Vapour Deposition (PVD)US3
Satin Chrome (SC)US26D
Satin Brass (SB)US4
Ordering Details
Product NoFinishSizes (B-C-A)
PH D20Nickel30.5 - 30.5 - 61mm
PH D20Chrome33 - 33 - 66mm
PH D20AB35.5 - 35.5 - 71mm
PH D20AC38 - 38 - 78mm
PH D20PVD40.5 - 40.5 - 81mm
PH D20SC45.5 - 45.5 - 91mm
PH D20SB

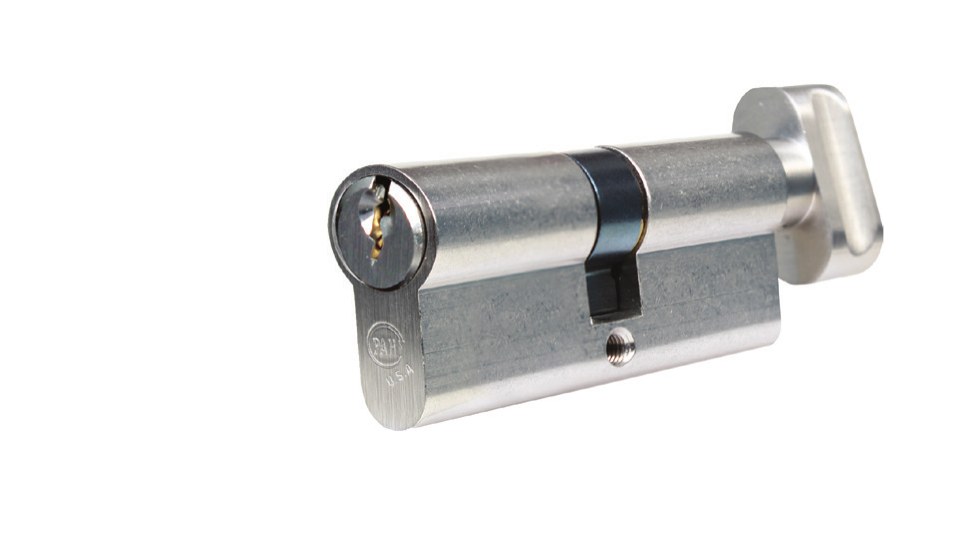

Euro Profile Cylinder
PH KW25
Knob Cylinder With Key
● 10 Yr Guarantee🔥 Fire Rated
PAH PH KW25 Knob Cylinder With Key - European Grade
Material
  • Brass 5 pin double cylinder

Material Option: Brass

Detail
  • Cylinder supplied with 3 brass keys, other side thumbturn
  • Anti-drill protection
  • Available in salt water resistant finish
  • Friction-free tumbler pins for extra long life
Certification
  • In compliance with EN 1634:2012
  • In compliance with EN 1303:2015
Finish & US Equivalent
Nickel (NI)US15
Chrome Plated (CP)US26
Antique Brass (AB)US10A
Antique Copper (AC)LB
Physical Vapour Deposition (PVD)US3
Satin Chrome (SC)US26D
Satin Brass (SB)US4
Ordering Details
Product NoFinishSizes (B-C-A)
PH KW25Nickel30.5 - 30.5 - 61mm
PH KW25Chrome33 - 33 - 66mm
PH KW25AB35.5 - 35.5 - 71mm
PH KW25AC38 - 38 - 78mm
PH KW25PVD40.5 - 40.5 - 81mm
PH KW25SC45.5 - 45.5 - 91mm
PH KW25SB

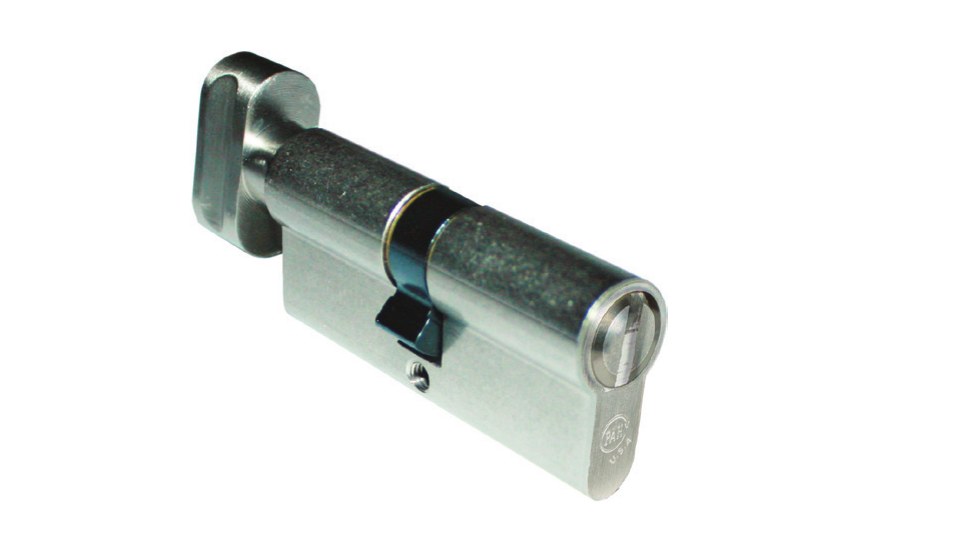

Euro Profile Cylinder
PH WC24
WC Knob Cylinder
● 10 Yr Guarantee
PAH PH WC24 WC Knob Cylinder - European Grade
Material
  • Brass WC knob cylinder

Material Option: Brass

Detail
  • Emergency slot one side, thumbturn other side
  • Suitable for toilet door
Finish & US Equivalent
Nickel (NI)US15
Chrome Plated (CP)US26
Antique Brass (AB)US10A
Antique Copper (AC)LB
Physical Vapour Deposition (PVD)US3
Satin Chrome (SC)US26D
Satin Brass (SB)US4
Ordering Details
Product NoFinishSizes (B-C-A)
PH WC24Nickel30.5 - 30.5 - 61mm
PH WC24Chrome33 - 33 - 66mm
PH WC24AB35.5 - 35.5 - 71mm
PH WC24AC38 - 38 - 78mm
PH WC24PVD40.5 - 40.5 - 81mm
PH WC24SC45.5 - 45.5 - 91mm
PH WC24SB
Euro Profile Cylinder
PH STW26
Single Cylinder With Thumbturn
● 10 Yr Guarantee
PAH PH STW26 Single Cylinder With Thumbturn - European Grade
Material
  • Brass single thumb cylinder

Material Option: Brass

Detail
  • Thumbturn in brass
Finish & US Equivalent
Nickel (NI)US15
Chrome Plated (CP)US26
Antique Brass (AB)US10A
Antique Copper (AC)LB
Physical Vapour Deposition (PVD)US3
Satin Chrome (SC)US26D
Satin Brass (SB)US4
Ordering Details
Product NoFinishSizes (B-C-A)
PH STW26Nickel10 - 27.5 - 37.5mm
PH STW26Chrome10 - 31.5 - 41.5mm
PH STW26AB
PH STW26AC
PH STW26PVD
PH STW26SC
PH STW26SB
Thumb Turn Accessory
A1 – D1
Euro Thumb Turns — Optional Designs
● 10 Yr Guarantee
PAH A1 – D1 Euro Thumb Turns — Optional Designs - European Grade
Material
  • Brass thumbturn

Material Option: Brass

Detail
  • Four optional thumbturn knob designs: A1, B1, C1, D1
  • Interchangeable across the PAH single-cylinder-with-thumbturn range
Finish & US Equivalent
Nickel (NI)US15
Chrome Plated (CP)US26
Antique Brass (AB)US10A
Antique Copper (AC)LB
Physical Vapour Deposition (PVD)US3
Satin Chrome (SC)US26D
Satin Brass (SB)US4
