Pull Handles

Pull Handle

PH-1001

Round Pull Handle

● 5 Yr Guarantee

Material

Stainless Steel 304/316 Grade round-section pull handle

Material Option: Stainless Steel 304 / 316 Grade

Detail

Round bar, 19mm / 25mm diameter
Fixed height 57mm
GD FIX — Glass Door
BB FIX — Wooden and Metal Door
G FIX — Glass and Wooden Door
S FIX — Wooden Door Only

Finish & US Equivalent

Satin Stainless Steel (SSS)	US32D
Polished Stainless Steel (PSS)	US32
Antique Brass (AB)	US10A
Antique Copper (AC)	LB
Physical Vapour Deposition (PVD)	US3
Satin Chrome (SC)	US26D
Satin Brass (SB)	US4

Ordering Details

Length (A)	Height (C)	Dia / Section (B)
225mm	57mm	19/25mm
300mm	57mm	19/25mm
350mm	57mm	19/25mm
400mm	57mm	19/25mm
450mm	57mm	19/25mm
500mm	57mm	19/25mm
600mm	57mm	19/25mm
700mm	57mm	19/25mm
800mm	57mm	19/25mm
900mm	57mm	19/25mm
1400mm	57mm	19/25mm

Pull Handle

PH-1002

Round Bar Pull Handle, Long

● 5 Yr Guarantee

Material

Stainless Steel 304/316 Grade round-section pull handle

Material Option: Stainless Steel 304 / 316 Grade

Detail

Round bar, 32/25/19mm tapered diameter
Fixed height 75mm
Available up to 2400mm for large pivot/entrance doors
GD FIX — Glass Door
BB FIX — Wooden and Metal Door
G FIX — Glass and Wooden Door
S FIX — Wooden Door Only

Finish & US Equivalent

Satin Stainless Steel (SSS)	US32D
Polished Stainless Steel (PSS)	US32
Antique Brass (AB)	US10A
Antique Copper (AC)	LB
Physical Vapour Deposition (PVD)	US3
Satin Chrome (SC)	US26D
Satin Brass (SB)	US4

Ordering Details

Length (A)	Height (C)	Dia / Section (B)
400mm	75mm	32/25/19mm
500mm	75mm	32/25/19mm
600mm	75mm	32/25/19mm
800mm	75mm	32/25/19mm
1000mm	75mm	32/25/19mm
1200mm	75mm	32/25/19mm
1600mm	75mm	32/25/19mm
1800mm	75mm	32/25/19mm
2000mm	75mm	32/25/19mm
2200mm	75mm	32/25/19mm
2400mm	75mm	32/25/19mm

Pull Handle

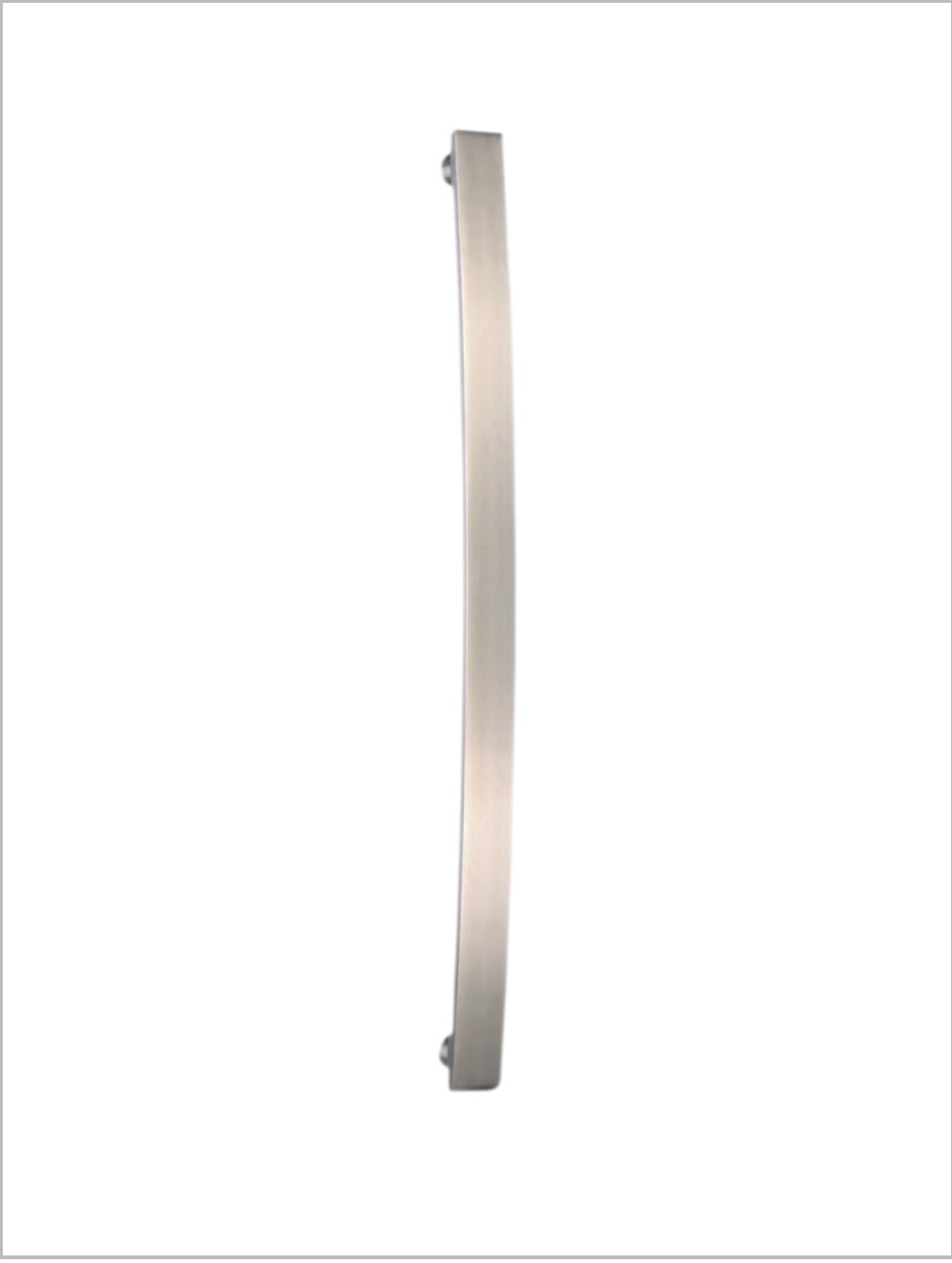

PH-1003

Flat Bar Pull Handle, Curved

● 5 Yr Guarantee

Material

Stainless Steel 316 Grade flat-bar pull handle

Material Option: Stainless Steel 304 / 316 Grade

Detail

Flat bar section, 40 x 10mm
Fixed height 65mm
Gently curved silhouette
GD FIX — Glass Door
BB FIX — Wooden and Metal Door
G FIX — Glass and Wooden Door
S FIX — Wooden Door Only

Finish & US Equivalent

Satin Stainless Steel (SSS)	US32D
Polished Stainless Steel (PSS)	US32

Ordering Details

Length (A)	Height (C)	Dia / Section (B)
675mm	65mm	40/10mm

Pull Handle

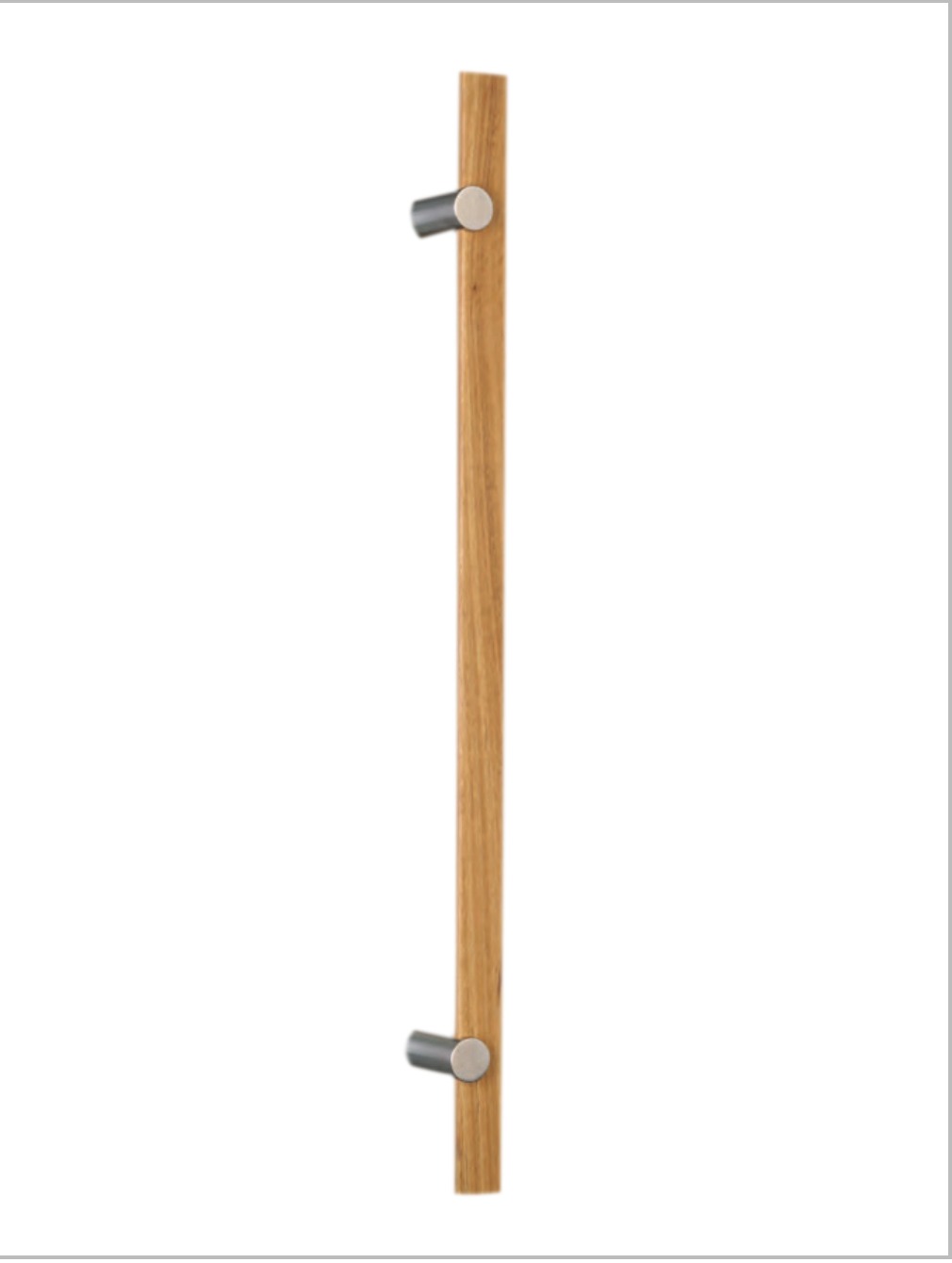

PH-1004

Flat Bar Pull Handle with Inlay

● 5 Yr Guarantee

Material

Stainless Steel 304/316 Grade flat-bar pull handle

Material Option: Stainless Steel 304 / 316 Grade

Detail

Flat bar section, 40 x 10mm
Fixed height 65mm
Decorative inlay accent design
GD FIX — Glass Door
BB FIX — Wooden and Metal Door
G FIX — Glass and Wooden Door
S FIX — Wooden Door Only

Finish & US Equivalent

Satin Stainless Steel (SSS)	US32D
Polished Stainless Steel (PSS)	US32

Ordering Details

Length (A)	Height (C)	Dia / Section (B)
400mm	65mm	40x10mm
600mm	65mm	40x10mm
800mm	65mm	40x10mm
1000mm	65mm	40x10mm

Pull Handle

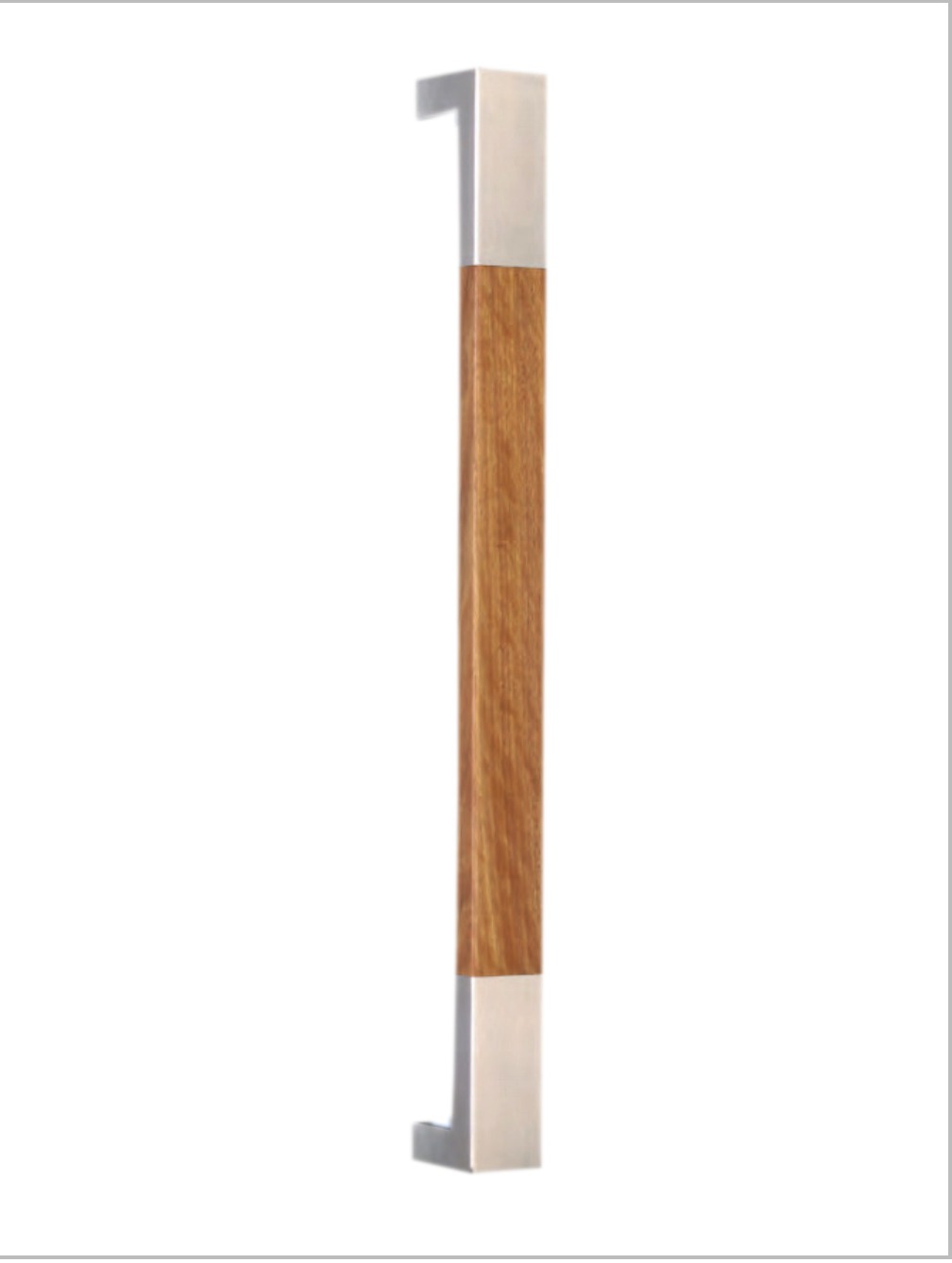

PH-1005

Flat Bar Pull Handle with Inlay, Wide

● 5 Yr Guarantee

Material

Stainless Steel 304/316 Grade flat-bar pull handle

Material Option: Stainless Steel 304 / 316 Grade

Detail

Flat bar section, 50 x 25mm
Fixed height 75mm
Decorative inlay accent design
GD FIX — Glass Door
BB FIX — Wooden and Metal Door
G FIX — Glass and Wooden Door
S FIX — Wooden Door Only

Finish & US Equivalent

Satin Stainless Steel (SSS)	US32D
Polished Stainless Steel (PSS)	US32

Ordering Details

Length (A)	Height (C)	Dia / Section (B)
400mm	75mm	50x25mm
600mm	75mm	50x25mm
800mm	75mm	50x25mm
1000mm	75mm	50x25mm
1500mm	75mm	50x25mm

Pull Handle

PH-1006

Flat Bar Pull Handle, Compact

● 5 Yr Guarantee

Material

Stainless Steel 304/316 Grade flat-bar pull handle

Material Option: Stainless Steel 304 / 316 Grade

Detail

Flat bar section, 25 x 10mm
Fixed height 55mm
Compact profile for cabinets and narrow stiles
GD FIX — Glass Door
BB FIX — Wooden and Metal Door
G FIX — Glass and Wooden Door
S FIX — Wooden Door Only

Finish & US Equivalent

Satin Stainless Steel (SSS)	US32D
Polished Stainless Steel (PSS)	US32

Ordering Details

Length (A)	Height (C)	Dia / Section (B)
300mm	55mm	25x10mm
450mm	55mm	25x10mm
600mm	55mm	25x10mm
900mm	55mm	25x10mm

Pull Handle

PH-1007

Round Pull Handle, Offset

● 5 Yr Guarantee

Material

Stainless Steel 304/316 Grade round-section pull handle

Material Option: Stainless Steel 304 / 316 Grade

Detail

Round bar, 32/25mm diameter
Fixed height 75mm
How to specify: PH-1007 x Length(A) x Height(C) x Dia(B) x Finish x Grade x Fixing
GD FIX — Glass Door
BB FIX — Wooden and Metal Door
G FIX — Glass and Wooden Door
S FIX — Wooden Door Only

Finish & US Equivalent

Satin Stainless Steel (SSS)	US32D
Polished Stainless Steel (PSS)	US32
Antique Brass (AB)	US10A
Antique Copper (AC)	LB
Physical Vapour Deposition (PVD)	US3
Satin Chrome (SC)	US26D
Satin Brass (SB)	US4

Ordering Details

Length (A)	Height (C)	Dia / Section (B)
400mm	75mm	32/25mm
600mm	75mm	32/25mm
800mm	75mm	32/25mm
1000mm	75mm	32/25mm
1200mm	75mm	32/25mm
1500mm	75mm	32/25mm
1600mm	75mm	32/25mm

Pull Handle

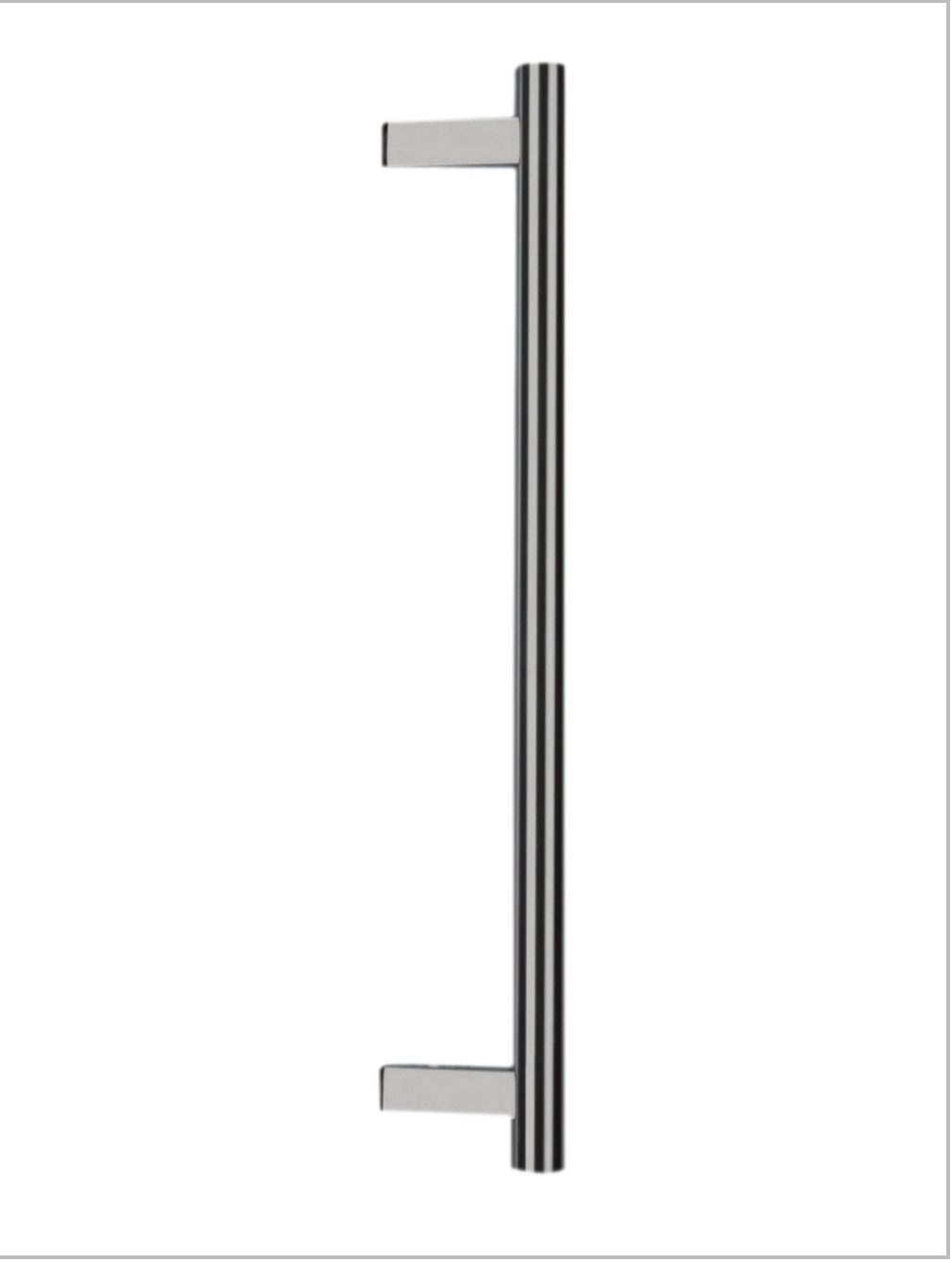

PH-1008

Round Pull Handle, Slim

● 5 Yr Guarantee

Material

Stainless Steel 304/316 Grade round-section pull handle

Material Option: Stainless Steel 304 / 316 Grade

Detail

Round bar, 38mm diameter
Fixed height 57mm
GD FIX — Glass Door
BB FIX — Wooden and Metal Door
G FIX — Glass and Wooden Door
S FIX — Wooden Door Only

Finish & US Equivalent

Satin Stainless Steel (SSS)	US32D
Polished Stainless Steel (PSS)	US32

Ordering Details

Length (A)	Height (C)	Dia / Section (B)
225mm	57mm	38mm
300mm	57mm	38mm
350mm	57mm	38mm
400mm	57mm	38mm
450mm	57mm	38mm
500mm	57mm	38mm
600mm	57mm	38mm
700mm	57mm	38mm
800mm	57mm	38mm
900mm	57mm	38mm

Pull Handle

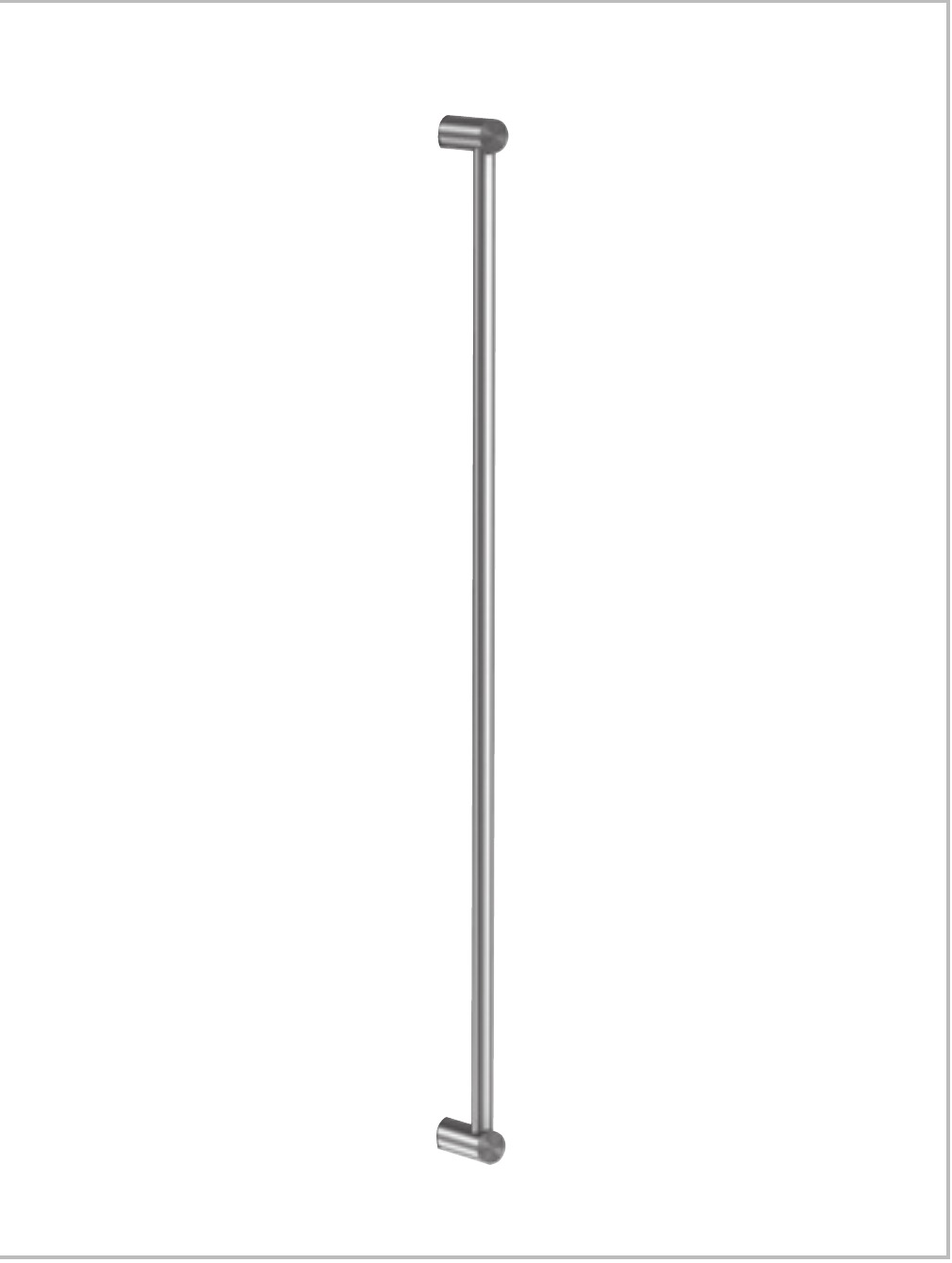

PH-1009

Round Pull Handle, Narrow

● 5 Yr Guarantee

Material

Stainless Steel 304/316 Grade round-section pull handle

Material Option: Stainless Steel 304 / 316 Grade

Detail

Round bar, 20mm diameter
Fixed height 65mm
GD FIX — Glass Door
BB FIX — Wooden and Metal Door
G FIX — Glass and Wooden Door
S FIX — Wooden Door Only

Finish & US Equivalent

Satin Stainless Steel (SSS)	US32D
Polished Stainless Steel (PSS)	US32

Ordering Details

Length (A)	Height (C)	Dia / Section (B)
270mm	65mm	20mm
380mm	65mm	20mm
450mm	65mm	20mm
600mm	65mm	20mm
750mm	65mm	20mm
900mm	65mm	20mm
1000mm	65mm	20mm
1200mm	65mm	20mm

Pull Handle

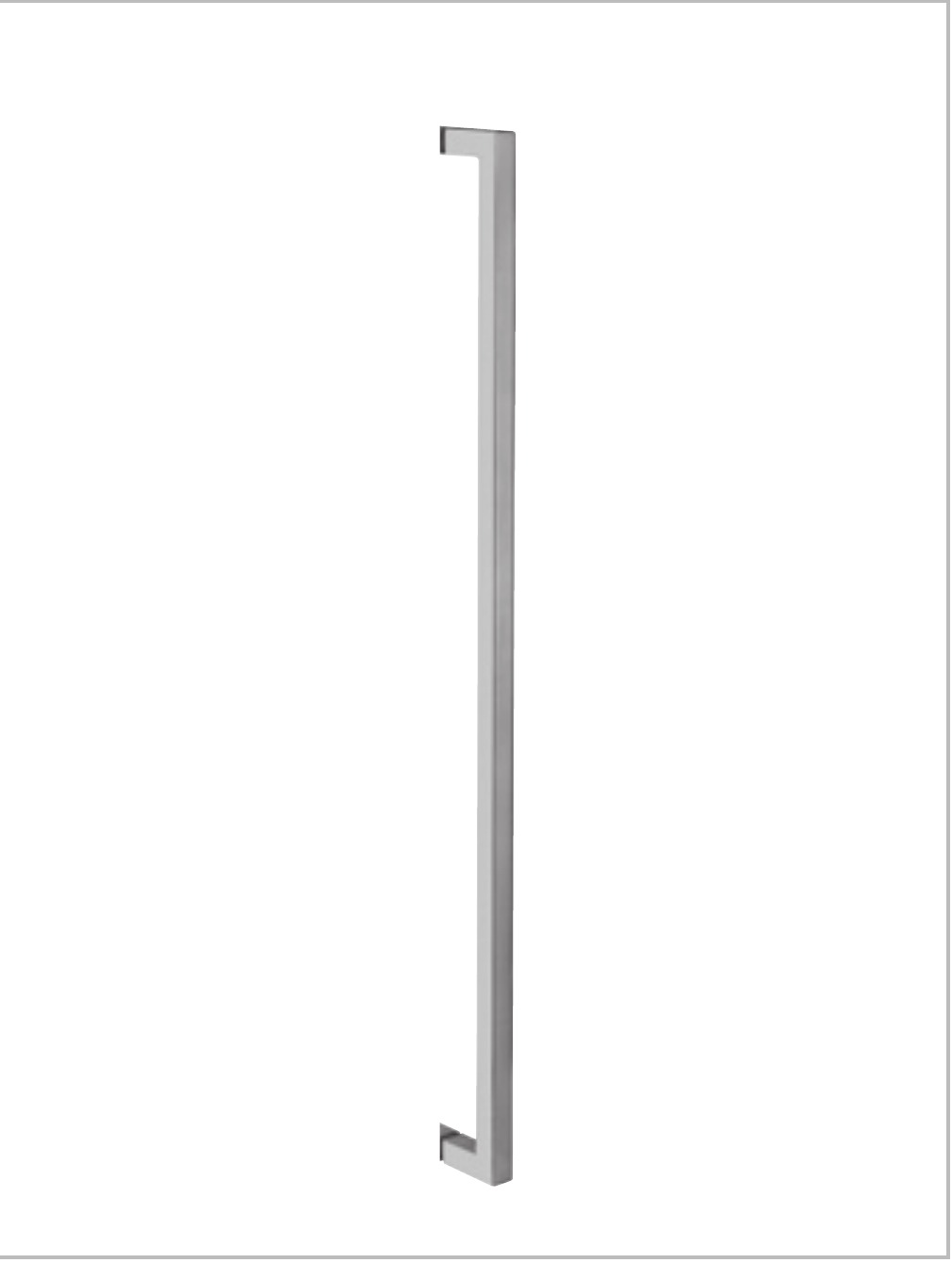

PH-1010

Square Bar Pull Handle

● 5 Yr Guarantee

Material

Stainless Steel 304/316 Grade square-section pull handle

Material Option: Stainless Steel 304 / 316 Grade

Detail

Square bar section, 20 x 20mm
Fixed height 45mm
GD FIX — Glass Door
BB FIX — Wooden and Metal Door
G FIX — Glass and Wooden Door
S FIX — Wooden Door Only

Finish & US Equivalent

Satin Stainless Steel (SSS)	US32D
Polished Stainless Steel (PSS)	US32

Ordering Details

Length (A)	Height (C)	Dia / Section (B)
225mm	45mm	20x20mm
300mm	45mm	20x20mm
350mm	45mm	20x20mm
400mm	45mm	20x20mm
450mm	45mm	20x20mm
500mm	45mm	20x20mm
600mm	45mm	20x20mm
700mm	45mm	20x20mm
800mm	45mm	20x20mm
900mm	45mm	20x20mm
