Floor Springs

Material

• Cast Iron body with double cam mechanism

Material Option: Cast Iron

Detail

• Double cam mechanism fits discreetly into the floor, giving improved resistance to interference and vandalism
• Particularly suited to shops, offices, hospitals and other high-traffic commercial spaces
• Available in both single and double action
• Adjustable power size 2-5, for doors up to 200kg; hold-open at 90° available
• Supplied with center pivot or off-set pivot set — body 306 x 108 x 40mm, angle of opening 130°

Certification

• In compliance with EN 1634
• In compliance with EN 1154

Finish & US Equivalent

Material

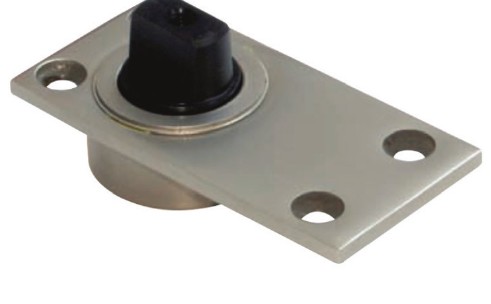

• Stainless Steel floor pivot with class-leading bearing technology

Material Option: Stainless Steel

Detail

• Uses the same class-leading bearing technology as the floor spring range
• For applications with no requirement for closing a door, or where hinges are impractical due to door weight or double-action need
• Door weight capacity up to 375kg, door width up to 1750mm
• Non-handed — body 92 x 45 x 15mm

Finish & US Equivalent
