European Grade · Hinges

Hinges

Low-profile concealed and visible hinge designs built for smooth, silent operation over years of daily use.

PAH PH 8300 Ball Bearing Butt Hinge
13 ModelsBall Bearing & ConcealedEN 1935 / EN 1634 Certified
Butt Hinge
PH 8300 / PH 8335
Ball Bearing Butt Hinge
● 10 Yr Guarantee🔥 Fire Rated
PAH PH 8300 / PH 8335 Ball Bearing Butt Hinge - European Grade
Material
  • Stainless Steel 304/316

Material Option: Stainless Steel 304 / 316 Grade

Detail
  • 2 ball bearing, 5 knuckle hinge — load bearing capacity 120kg
  • Available square and radius corner
  • Tested to over 200,000 cycles — Grade 13
Certification
  • In compliance with EN 1634:2012
  • In compliance with EN 1935:2002 / AC 2003
Finish & US Equivalent
Satin Stainless Steel (SSS)US32D
Polished Stainless Steel (PSS)US32
Antique Brass (AB)US10A
Antique Copper (AC)LB
Physical Vapour Deposition (PVD)US3
Satin Chrome (SC)US26D
Satin Brass (SB)US4
Ordering Details
Product NoFinishGradeForend Type
PH 8300102 x 76 x 3mm304 / 316All 7 finishes
PH 8335102 x 89 x 3mm304 / 316All 7 finishes
Butt Hinge

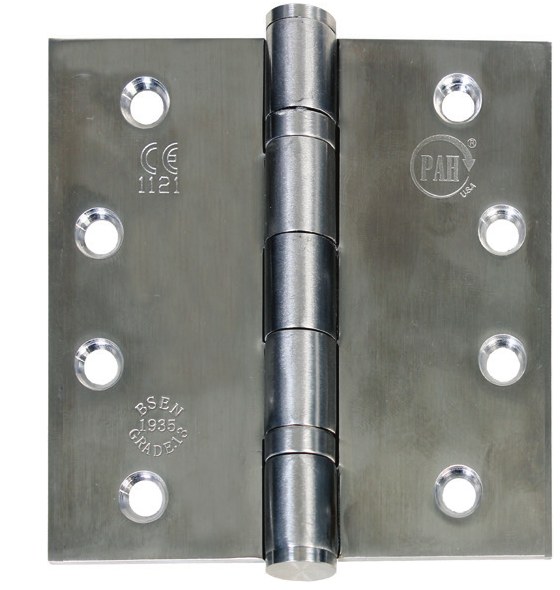

PH 8400 / PH 8500
Ball Bearing Butt Hinge
● 10 Yr Guarantee🔥 Fire Rated
PAH PH 8400 / PH 8500 Ball Bearing Butt Hinge - European Grade
Material
  • Stainless Steel 304/316

Material Option: Stainless Steel 304 / 316 Grade

Detail
  • 2 ball bearing, 5 knuckle hinge — load bearing capacity 120kg
  • Available square and radius corner
  • Tested to over 200,000 cycles — Grade 13
Certification
  • In compliance with EN 1634:2012
  • In compliance with EN 1935:2002 / AC 2003
Finish & US Equivalent
Satin Stainless Steel (SSS)US32D
Polished Stainless Steel (PSS)US32
Antique Brass (AB)US10A
Antique Copper (AC)LB
Physical Vapour Deposition (PVD)US3
Satin Chrome (SC)US26D
Satin Brass (SB)US4
Ordering Details
Product NoFinishGradeForend Type
PH 8400102 x 102 x 3mm304 / 316All 7 finishes
PH 8500115 x 102 x 3mm304 / 316All 7 finishes
Butt Hinge

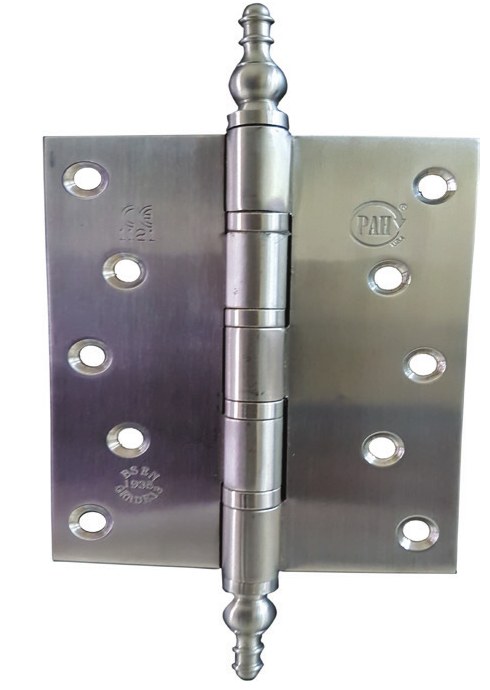

PH 9540
Ball Bearing Butt Hinge
● 10 Yr Guarantee🔥 Fire Rated
PAH PH 9540 Ball Bearing Butt Hinge - European Grade
Material
  • Stainless Steel 304/316

Material Option: Stainless Steel 304 / 316 Grade

Detail
  • 4 ball bearing, 5 knuckle hinge — load bearing capacity 160kg
  • Available square and radius corner
  • Tested to over 200,000 cycles — Grade 13
Certification
  • In compliance with EN 1634:2012
  • In compliance with EN 1935:2002 / AC 2003
Finish & US Equivalent
Satin Stainless Steel (SSS)US32D
Polished Stainless Steel (PSS)US32
Antique Brass (AB)US10A
Antique Copper (AC)LB
Physical Vapour Deposition (PVD)US3
Satin Chrome (SC)US26D
Satin Brass (SB)US4
Ordering Details
Product NoFinishGradeForend Type
PH 9540126 x 102 x 3.5mm304 / 316All 7 finishes
PH 9540152 x 114 x 3.5mm304 / 316All 7 finishes
3D Concealed Hinge
PH 700 L / PH 700 R
3D Adjustable Concealed Hinge, 60kg
● 10 Yr Guarantee
PAH PH 700 L / PH 700 R 3D Adjustable Concealed Hinge, 60kg - European Grade
Material
  • Zinc alloy

Material Option: Zinc Alloy

Detail
  • Load capacity 60kg / 3 pieces
  • Open angle up to 180 degrees
  • Max door width 1000mm, max door height 2000mm, min. door thickness 40mm
  • Side adjustment ±1.0mm, height ±1.5mm, depth ±1.0mm
Finish & US Equivalent
Nickel (NI)US15
Chrome Plated (CP)US32
Physical Vapour Deposition (PVD)US3
Satin Chrome (SC)US26D
Ordering Details
Product NoFinishGradeForend Type
PH 700 L111.5 x 29 x 16mmZinc AlloyNI / CP / PVD / SC
PH 700 R111.5 x 29 x 16mmZinc AlloyNI / CP / PVD / SC
3D Concealed Hinge

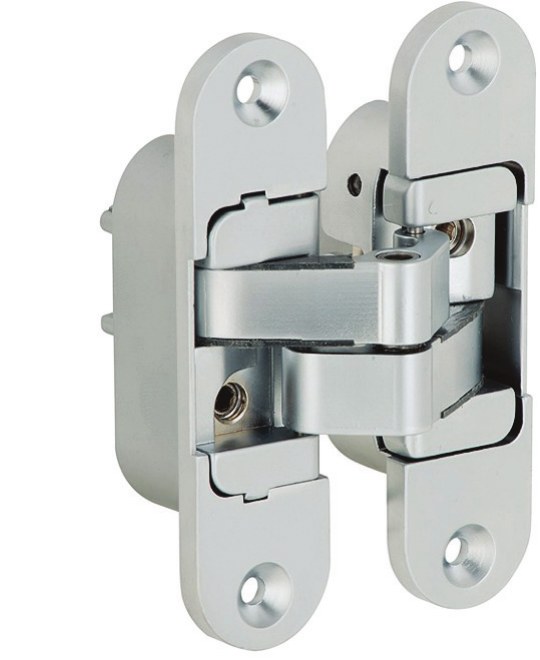

PH 700 SL / PH 700 SR
3D Adjustable Concealed Hinge, 40kg
● 10 Yr Guarantee
PAH PH 700 SL / PH 700 SR 3D Adjustable Concealed Hinge, 40kg - European Grade
Material
  • Zinc alloy

Material Option: Zinc Alloy / Stainless Steel Pins

Detail
  • Load capacity 40kg / 3 pieces
  • Open angle up to 180 degrees
  • Max door width 900mm, max door height 2000mm, min. door thickness 35mm
  • Side adjustment ±1.0mm, height ±1.5mm, depth ±1.0mm
Finish & US Equivalent
Nickel (NI)US15
Chrome Plated (CP)US32
Physical Vapour Deposition (PVD)US3
Satin Chrome (SC)US26D
Ordering Details
Product NoFinishGradeForend Type
PH 700 SL95 x 23.5 x 12.5mmZinc AlloyNI / CP / PVD / SC
PH 700 SR95 x 23.5 x 12.5mmZinc AlloyNI / CP / PVD / SC
Concealed Hinge

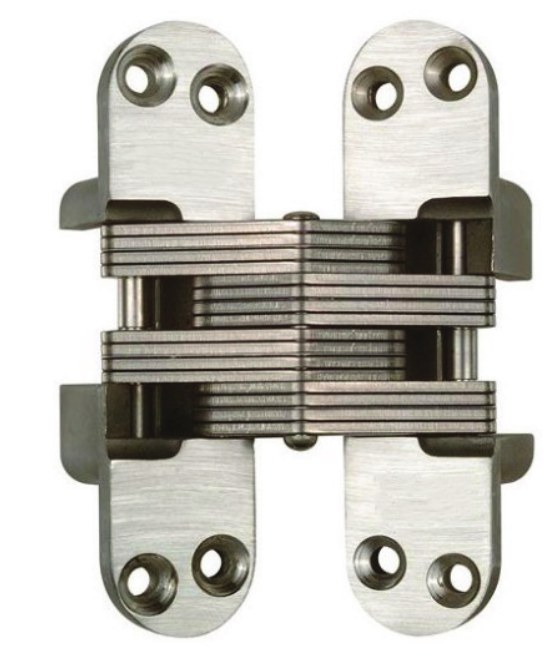

SS 710.1 – 710.4
Stainless Steel Concealed Hinge
● 10 Yr Guarantee
PAH SS 710.1 – 710.4 Stainless Steel Concealed Hinge - European Grade
Material
  • Stainless Steel

Material Option: Stainless Steel

Detail
  • Concealed mounting, flush interior door
  • Suitable door weight 60kg – 120kg, 3 hinges per door
  • Opening angle 180 degrees, door thickness 45mm
  • Note: max weight rating is with 3 pcs per door
Finish & US Equivalent
Satin Stainless Steel (SSS)US32D
Polished Stainless Steel (PSS)US32
Antique Brass (AB)US10A
Physical Vapour Deposition (PVD)US3
Ordering Details
CodeSize (A x B)Material GradeRated Weight
SS 710.195 x 19mm30460kg
SS 710.2118 x 25mm30480kg
SS 710.3118 x 28mm304100kg
SS 710.4140 x 35mm304120kg
Concealed Hinge

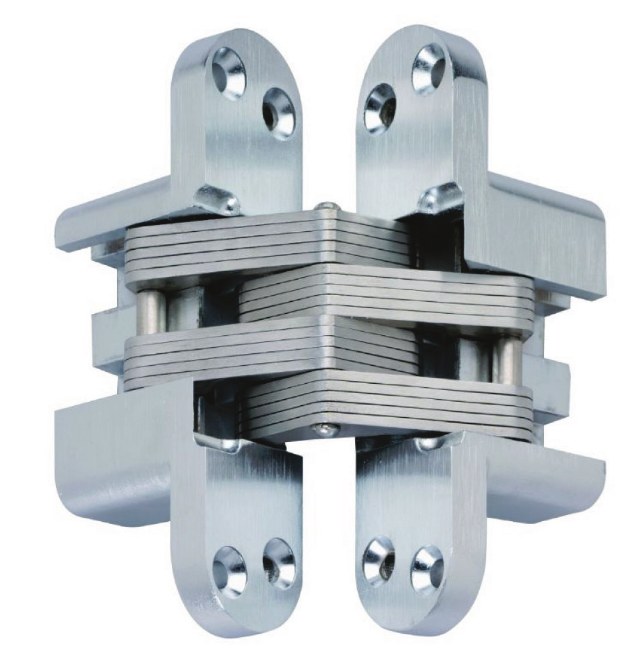

ZA 711.1 – 711.4
Concealed Hinge
● 10 Yr Guarantee
PAH ZA 711.1 – 711.4 Concealed Hinge - European Grade
Material
  • Zinc Alloy

Material Option: Zinc Alloy / Stainless Steel Pins

Detail
  • Concealed mounting, flush interior door
  • Suitable door weight 20kg – 60kg, 3 hinges per door
  • Opening angle 180 degrees, door thickness 45mm
  • Note: max weight rating is with 3 pcs per door
Finish & US Equivalent
Nickel (NI)US15
Chrome Plated (CP)US32
Physical Vapour Deposition (PVD)US3
Satin Chrome (SC)US26D
Antique Brass (AB)US10A
Ordering Details
CodeSize (A x B)Material GradeRated Weight
ZA 711.170 x 16mmZinc20kg
ZA 711.295 x 19mmZinc20kg
ZA 711.3118 x 28mmZinc40kg
ZA 711.4140 x 35mmZinc60kg
Concealed Hinge
PH 714
Concealed Hinge
● 10 Yr Guarantee
PAH PH 714 Concealed Hinge - European Grade
Material
  • Stainless Steel 304

Material Option: Stainless Steel 304

Detail
  • Concealed mounting, flush door
  • Suitable door weight up to 120kg, 3 hinges per door
  • Opening angle 180 degrees, door thickness 45mm
Finish & US Equivalent
Satin Stainless Steel (SSS)US32D
Polished Stainless Steel (PSS)US32
Antique Brass (AB)US10A
Antique Copper (AC)LB
Physical Vapour Deposition (PVD)US3
Satin Chrome (SC)US26D
Satin Brass (SB)US4
Ordering Details
Product NoFinishGradeForend Type
PH 714H 180mm304All 8 finishes
Rising Hinge

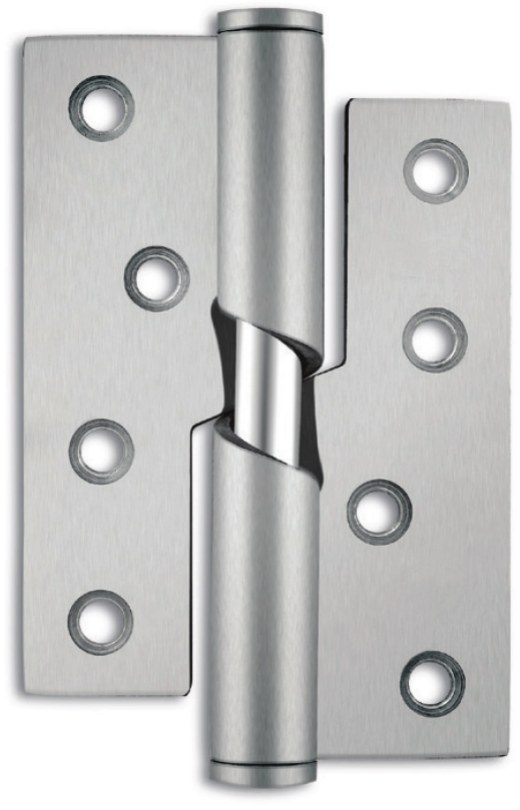

PH 433R / PH 433L
Rising Hinge
● 10 Yr Guarantee
PAH PH 433R / PH 433L Rising Hinge - European Grade
Material
  • Stainless Steel 304/316

Material Option: Stainless Steel 304 / 316 Grade

Detail
  • Right hand anti-clockwise closing, or left hand clockwise closing hinge
  • Recommended two pieces per door
Finish & US Equivalent
Satin Stainless Steel (SSS)US32D
Polished Stainless Steel (PSS)US32
Antique Brass (AB)US10A
Physical Vapour Deposition (PVD)US3
Ordering Details
Product NoFinishGradeForend Type
PH 433R102 x 76 x 3mm304 / 316Right hand
PH 433L102 x 76 x 3mm304 / 316Left hand
Single Action Spring Hinge

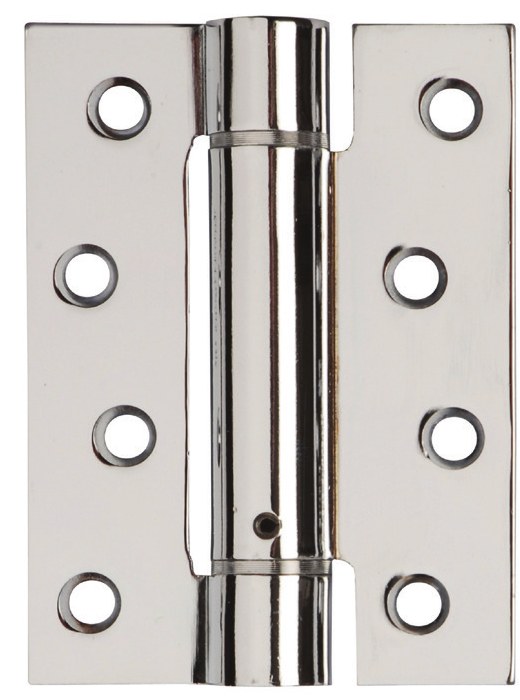

PH 434 / PH 435
Single Action Spring Hinge
● 10 Yr Guarantee
PAH PH 434 / PH 435 Single Action Spring Hinge - European Grade
Material
  • Stainless Steel 304

Material Option: Stainless Steel 304

Detail
  • Maintenance-free polymer friction bearing
  • Spring force can be adjusted and locked in position
Finish & US Equivalent
Satin Stainless Steel (SSS)US32D
Polished Stainless Steel (PSS)US32
Antique Brass (AB)US10A
Antique Copper (AC)LB
Physical Vapour Deposition (PVD)US3
Satin Chrome (SC)US26D
Satin Brass (SB)US4
Ordering Details
Product NoFinishGradeForend Type
PH 434102 x 86 x 3mm304All 7 finishes
PH 435114 x 102 x 3mm304All 7 finishes
Double Action Spring Hinge
PH 440 / 441 / 442
Double Action Spring Hinge
● 10 Yr Guarantee
PAH PH 440 / 441 / 442 Double Action Spring Hinge - European Grade
Material
  • Stainless Steel 304

Material Option: Stainless Steel 304

Detail
  • Double action spring hinge, without hold-open
  • 180 degree swing action on both sides
  • Suitable for flush interior doors
Finish & US Equivalent
Satin Stainless Steel (SSS)US32D
Polished Stainless Steel (PSS)US32
Antique Brass (AB)US10A
Physical Vapour Deposition (PVD)US3
Ordering Details
CodeSize (H x W)Material GradeDoor Weight
PH 440100 x 54mm (4")30460kg door weight
PH 441125 x 65mm (5")30480kg door weight
PH 442150 x 75.5mm (6")304120kg door weight
Extra Heavy Duty Hinge

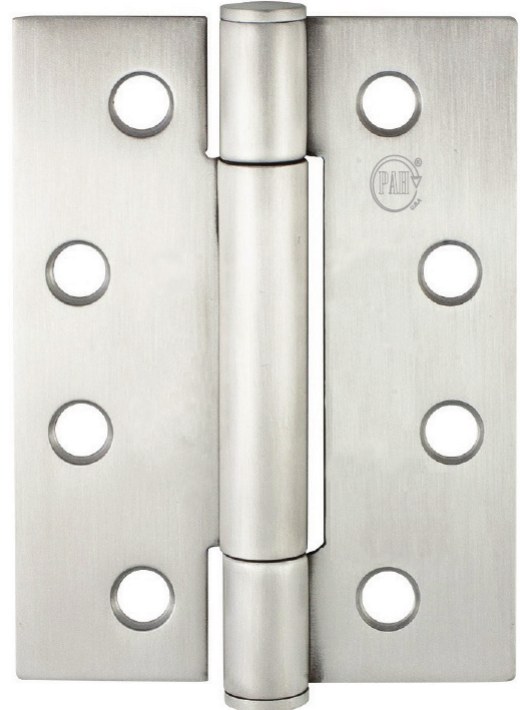

PH 9700 / 9701 / 9702
Concealed Bearing Hinge
● 10 Yr Guarantee🔥 Fire Rated
PAH PH 9700 / 9701 / 9702 Concealed Bearing Hinge - European Grade
Material
  • Stainless Steel 304/316

Material Option: Stainless Steel 304 / 316

Detail
  • Suitable for interior and exterior doors
  • Maintenance-free bearing hinges
  • Suitable door weight up to 160kg, door thickness 45mm to 55mm
Certification
  • In compliance with EN 1634:2012
  • In compliance with EN 1935:2002 / AC 2003
Finish & US Equivalent
Satin Stainless Steel (SSS)US32D
Polished Stainless Steel (PSS)US32
Antique Brass (AB)US10A
Antique Copper (AC)LB
Physical Vapour Deposition (PVD)US3
Satin Chrome (SC)US26D
Satin Brass (SB)US4
Ordering Details
Product NoFinishGradeForend Type
PH 9700102 x 76 x 3mm304 / 316All 9 finishes
PH 9701102 x 89 x 3mm304 / 316All 9 finishes
PH 9702102 x 102 x 3.5mm304 / 316All 9 finishes
Heavy Duty Project Hinge
PH 9800 / 9801 / 9802
Heavy Duty Hinge
● 10 Yr Guarantee🔥 Fire Rated
PAH PH 9800 / 9801 / 9802 Heavy Duty Hinge - European Grade
Material
  • Stainless Steel 304/316

Material Option: Stainless Steel 304 / 316 Grade

Detail
  • 3 knuckle concealed bearing heavy duty hinge — capacity 300kg
  • Available square and radius corner
Certification
  • In compliance with EN 1634:2012
  • In compliance with EN 1935:2002 / AC 2003
Finish & US Equivalent
Satin Stainless Steel (SSS)US32D
Polished Stainless Steel (PSS)US32
Antique Brass (AB)US10A
Antique Copper (AC)LB
Physical Vapour Deposition (PVD)US3
Satin Chrome (SC)US26D
Satin Brass (SB)US4
Ordering Details
Product NoFinishGradeForend Type
PH 9800160 x 90 x 4mm304 / 316All 9 finishes
PH 9801160 x 120 x 4mm304 / 316All 9 finishes
PH 9802160 x 140 x 4mm304 / 316All 9 finishes

Explore more of European Grade

See the full ten-category collection, from mortise locks to modern handles.
